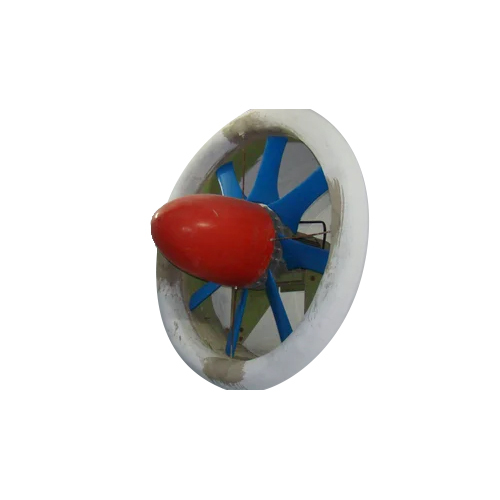

Industrial Axial Flow Fan

An Industrial Axial Flow Fan is a type of fan commonly used in industrial settings for various ventilation, cooling, and air circulation applications. The impeller blades are typically fixed or adjustable and are oriented parallel to the fans axis of rotation. They are used in a wide range of industrial applications, including ventilation systems, HVAC systems, cooling towers, air-cooled heat exchangers, condensers, spray booths, drying processes, and pneumatic conveying systems. Industrial Axial Flow Fan offer efficient and reliable air movement solutions for a wide range of industrial applications, providing essential ventilation, cooling, and air circulation capabilities to ensure optimal operating conditions and worker comfort in industrial environments.

• Size :- 900 mm to 1800 mm.
• Capacity :- 15,000 CFM to 1,15,000 CFM.
• Pressure :- Upto 80mm WG.
• Fan casing is made from heavy gauge steel with adjustable bolted type base support frame.
• Fan blades are designed with latest aerodynamic software & achieve efficiency upto 85%.
• Static & dynamic balanced to ISO grade.
• Bell mouth inlet & outlet cone increases system efficiency by 5 to 6%.
• Nose fairing or spinners reduces static or resistance by 5 to 7 %.
• Saves power compare to any other manufacturer & gives better pressure.

Q: What is the material of the Industrial Axial Flow Fan?

A: The material of the Industrial Axial Flow Fan is FRP.

Q: What is the installation type of the Industrial Axial Flow Fan?

A: The installation type of the Industrial Axial Flow Fan is Wall Mounted.

Q: What are the speed modes of the Industrial Axial Flow Fan?

A: The speed modes of the Industrial Axial Flow Fan are 1000 RPM and 1440 RPM.

Q: What is the power source of the Industrial Axial Flow Fan?

A: The power source of the Industrial Axial Flow Fan is electrical.

Q: Is there a warranty for the Industrial Axial Flow Fan?

A: Yes, there is a warranty for the Industrial Axial Flow Fan.
